Summary

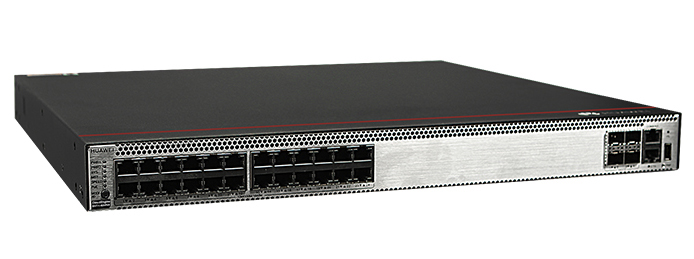

The Huawei S5731‑S24P4X combines robust PoE+ support, high throughput, advanced security, and smart O&M systems tailored for modern enterprise network environments. Its modular power design, stacking capabilities, and rich feature set make it an excellent fit for resilient, scalable, and secure access networks.
Download Datasheet: S5731S-S32ST4X-A (98011814 98011814-001)Datasheet.pdf
Download Datasheet: S5731-S48T4X (98011847/02353AJB/-003)Datasheet.pdf
Download Datasheet: S5731-S48P4X (02353AJH/-001/003)Datasheet.pdf
Download Datasheet: S5731-H48T4XC (02352QPT/-003/007)Datasheet.pdf
Download Datasheet: S5731S-S24P4X-A (02353AHY/-001/-003)Datasheet.pdf
Download Datasheet: S5731S-S24T4X-A (02353AHV/-001)Datasheet.pdf
For more datasheets, please go to the Download tab on each product details page, or search in the Datasheet Download Center.
Product Description
The Huawei CloudEngine S5731‑S24P4X (models 02353AHX / 02353AHX‑001 / 02353AHX‑003) is an enterprise‑grade PoE+ access switch within the S5731‑S series, designed to deliver high performance for campus, enterprise, and metro network scenarios. It integrates 24 Gigabit PoE+ ports and 4 x 10GbE SFP+ uplink ports, powered by Huawei’s Versatile Routing Platform (VRP).
Key Technical Specifications
▪ Ports: 24 x 10/100/1000BASE‑T PoE+ ports, 4 x 10GE SFP+ uplinks
▪ Switching Capacity: 128 Gbps (device) / 672 Gbps (system)
▪ Forwarding Rate: 96 Mpps
▪ Power Modules: Supports two modular PoE power supplies (1000 W or 600 W each) for 1+1 redundancy
▪ Memory: Typically includes 2 GB RAM and 1 GB flash (varies by variant)
▪ Dimensions: Approx. 43.6 × 442 × 420 mm
▪ Weight: Ranges from ~8.4 kg to 9.7 kg depending on model and modules
▪ Power Consumption: ~121 W (no PoE), up to ~977 W under full PoE load
▪ Operating Temperature: −5 °C to 45 °C typical for similar models
Product Key Features
▪ Switching capacity supporting high-density PoE+ deployments.
▪ Layer 2/3 traffic processing with multicast and IPv6 features (OSPF, IS‑IS, BGP, VRRP).
▪ Full PoE+ support across 24 ports for voice, video, and wireless access.
▪ Two hot-swappable PoE power modules with 1+1 redundancy for critical uptime.
▪ Stacking (iStack) supports up to nine units, simplifying management.
▪ Enhanced security: MAC and 802.1x authentication, DHCP snooping, ARP inspection, DoS attack protection.
▪ Reliable ring protection with SEP and ERPS, plus STP/RSTP/MSTP.
▪ Simplified management with SVF, zero-touch deployment, SNMP/CLI/SSH, remote upgrades.
▪ Intelligent O&M: telemetry, CampusInsight, eMDI for media performance monitoring.
▪ Security analytics via NetStream, HiSec Insight, encrypted traffic detection, and honeypot deception.
▪ Python-based Open Programmable System (OPS) allows custom scripting.
Software and Licensing
The S5731‑S24P4X uses Huawei’s VRP OS and requires optional N1 Advanced software or VXLAN license for advanced features like VXLAN, SDN deployments, and public cloud integration.
Redundancy and Reliability
The switch supports hardware-level resilience with dual removable PoE power modules in 1+1 configuration, intelligent ring protection (SEP and ERPS), and stacking capabilities to ensure resilient campus deployments.
Environmental and Physical Details
▪ Dimensions: 43.6 mm (H) × 442 mm (W) × 420 mm (D) approx.
▪ Weight: 8.4 kg – 9.7 kg depending on components
▪ Operating Temperature: −5 °C to 45 °C standard for similar S-series models
Ideal Deployment Scenarios
▪ Enterprise campus access or aggregation layer for high-density PoE+ requirements.
▪ Metro or MAN network access with high-bandwidth uplinks.
▪ Scalable environments using stacking and SVF architecture.
▪ Organizations needing intelligent traffic monitoring and security analytics.
Ordering Information
Several variants are available: ▪ CloudEngine S5731‑S24P4X (PoE+, no power module).
▪ Variants with AC or DC power modules and memory enhancements are distinguished by suffix codes in the part number.
Conclusion
For organizations deploying power-hungry edge devices like IP cameras, Wi‑Fi access points, or VoIP phones, the CloudEngine S5731‑S24P4X is a compelling choice. It delivers enterprise-class performance and comprehensive manageability in a field-proven Huawei platform.
Huawei CloudEngine Switch S5731-S24P4X (02353AHX/-001/-003/-004)
Huawei All Series Switches New and Used
For Huawei product list and quote, please visit: https://www.hi-network.com/categories/huawei or contact us at www.hi-network.com (Email: [email protected])
S5731-S24P4X (02353AHX/02353AHX-001/02353AHX-003)
Version Mapping
Table 4-1316 lists the mapping between the S5731-S24P4X chassis and software versions.
Table 4-1316 Version mapping
| Series | Model | Software Version |
|---|---|---|
| S5731-S | S5731-S24P4X | 02353AHX: V200R019C00 and later versions02353AHX-001: V200R020C10 and later versions02353AHX-003: V200R021C10SPC600 and later versions (If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch.) |
Appearance and Structure
Figure 4-520 S5731-S24P4X (02353AHX) appearance
| 1 | Twenty-four PoE+ 10/100/1000BASE-T ports | 2 | Applicable modules and cables: |
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 | NOTICE: |
| 7 | NOTE:It is used with a ground cable. | 8 | NOTE: |
| 9 | NOTE: | 10 | NOTE: |
| 11 | NOTE: | - | - |
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s, and must use an Ethernet cable. Table 4-1317 describes the attributes of a 10/100/1000BASE-T Ethernet electrical port.Table 4-1317 Attributes of a 10/100/1000BASE-T Ethernet electrical port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Working mode | 10/100/1000 Mbit/s auto-sensing |
| Maximum transmission distance | 100 m |
10GE SFP+ optical port
A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 4-1318 describes the attributes of a 10GE SFP+ Ethernet optical port.Table 4-1318 Attributes of a 10GE SFP+ port
| Attribute | Description |
|---|---|
| Connector type | LC/PC |
| Optical port attributes | Depend on the optical module used |
| Standards compliance | IEEE802.3ae |
| Working mode | GE/10GE auto-sensing |
Console port
The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4-1319.Table 4-1319 Attributes of a console port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | RS-232 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Baud rate | 9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/sDefault value: 9600 bit/s |
ETH management port
You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. Table 4-1320 describes the attributes of an ETH management port.Table 4-1320 Attributes of an ETH management port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working Mode | 10/100 Mbit/s auto-sensing |
| Maximum transmission distance | 100 m |
In V200R012C00 and later versions, you can log in to the switch that contains the ETH management port for the first time through the ETH port. For details, see "First Login to a Switch" in the Configuration Guide - Basic Configuration. If you have logged in to the switch for the first time by pressing and holding the MODE button for 6 seconds or longer and saved the configuration, the default configuration on the ETH port will be cleared. In this case, you cannot log in to the switch for the first time through the ETH port. You are advised to log in to the switch for the first time through the ETH port.
USB port
The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
Indicator Description
The S5731-S24P4X has the same types of indicators as the S5731-S48P4X. For details, see Indicator Description.
Power Supply Configuration
The switch is a PoE switch and supports two power module slots, each of which can have a 1000 W PoE or 600 W PoE power module installed. Pluggable AC and DC PoE power modules can be used together in the same switch.
Table 4-1321 Power supply configurations
| Power Module 1 | Power Module 2 | Available PoE Power | Maximum Number of Ports (Fully Loaded) |
|---|---|---|---|
| 1000 W AC (220 V)1000 W DC | – | 760 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 1000 W AC (110 V) | – | 665 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 22 |
| 1000 W AC (220 V)1000 W DC | 1000 W AC (220 V)1000 W DC | 1600 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 1000 W AC (110 V)1000 W DC | 1000 W AC (110 V) | Versions earlier than V200R021C10: 1330 WV200R021C10 and later versions: 1520 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 600 W AC (220 V) | – | 380 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 12 |
| 600 W AC (110 V) | – | 95 W | 802.3af (15.4 W per port): 6802.3at (30 W per port): 3 |
| 600 W AC (220 V) | 600 W AC (220 V) | 950 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 600 W AC (110 V) | 600 W AC (110 V) | 380 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 12 |
| 1000 W AC (220 V)1000 W DC | 600 W AC (220 V) | 1330 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
When a switch has two power modules installed, the two power modules work in redundancy mode to provide power for the chassis and in load balancing mode to provide power for PDs.
Heat Dissipation
The S5731-S24P4X uses pluggable fan modules for forced air cooling. Air flows in from the front side and exhausts from the rear panel.
Technical Specifications
Table 4-1322 lists technical specifications of the S5731-S24P4X.
Table 4-1322 Technical specifications
| Item | Description |
|---|---|
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.21 years |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 HzHigh-Voltage DC input: 240 V DCDC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 HzHigh-Voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 121 W100% PoE loads: 977 W (PoE: 720 W) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE: |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
| Part number | 02353AHX02353AHX-00102353AHX-003 |
